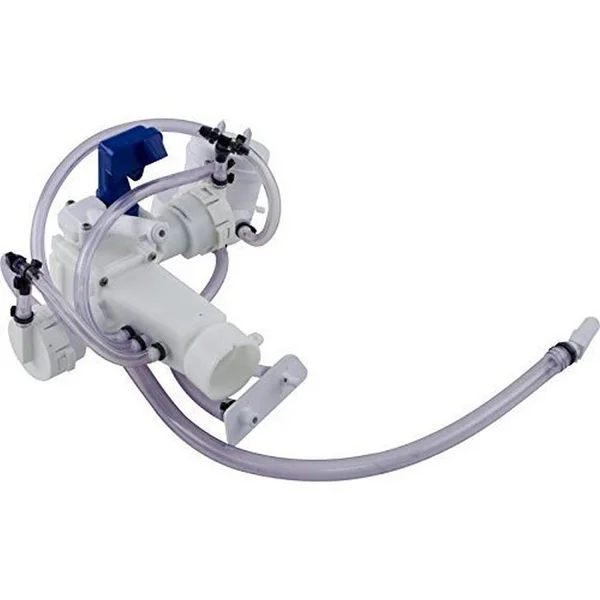

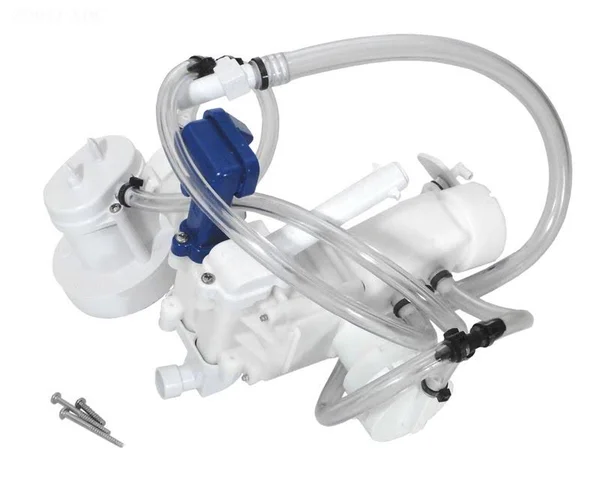

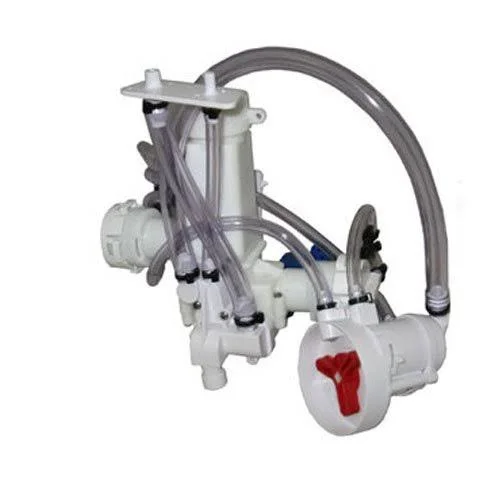

Hayward Manifold ASSEMBLY, AX6000MA3GA

Description

Install new manifol Gearbox assy (N6) making sure gearbox switch linkage (N7) engages with switch assembly (N8) Replace front spinout jet (N9) on lower housin and replace manifold retaining screw (N5) Replace 2 floats (N3) and vactube (N4) Replace deck. Inlet filter screen stays in manifold inlet when hose is removed for storage. Turn cleaner over so suction inlet is facing upwards and remove 5 screws (N1) Turn cleaner back over to sit on its wheels and carefully remove deck assembly (N2) Remove 2 floats (N3) and vactube (N4) Remove manifold retaining screw (N5) and lift out manifold. Lift out lower spinout jet (N9) from its location with lower housing. Before replacing in manifold, check that there is no debris visible inside of manifold inlet. lf sand or debris can be seen, gently rinse out manifold with inlet pointed down. Rinse to ensure that all debris and sand is removed from the inlet filter screen. Replace 5 deck mounting screws (N1) Maintenance Update Phantom/Viper Turbo Manifold Inlet Filter Screen. Remove tank assy (N10)from old manifold by removing 2 screws (N11) Install tank assy (N10) on new manifold and replace 2 screws (N11). Inlet Filter Screen is available as spare part AX6004R1. If there is debris in the filter it can be removed for cleaning by grasping the bar and gently pulling while twisting.

Key Features

• Inlet Filter Screen is available as spare part AX6004R1.
• If there is debris in the filter it can be removed for cleaning by grasping the bar and gently pulling while twisting.
• Replace 5 deck mounting screws (N1) Maintenance Update Phantom/Viper Turbo Manifold Inlet Filter Screen.
• Remove tank assy (N10)from old manifold by removing 2 screws (N11) Install tank assy (N10) on new manifold and replace 2 screws (N11).
• Inlet filter screen stays in manifold inlet when hose is removed for storage.
• Lift out lower spinout jet (N9) from its location with lower housing.
