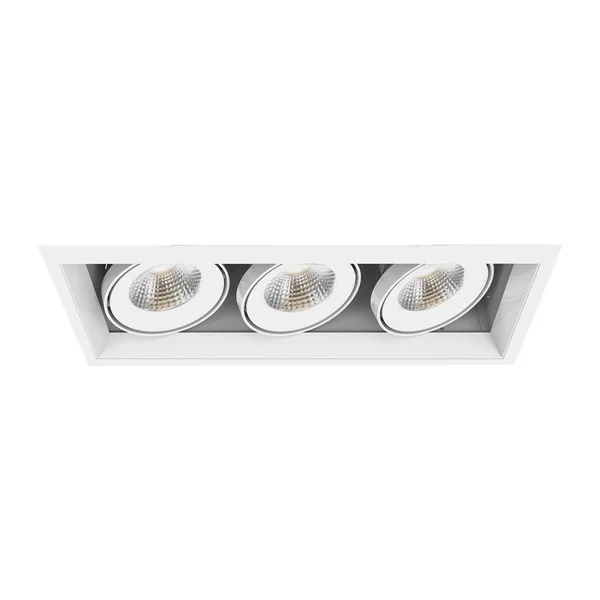

Eurofase 3-Light LED Multiple Recess TE163LED-40-2-22

Description

Driver box mates to fixture by 24 inch flexible BX cable and has one 1/2 inch and two 3/4 inch knockouts for through branch wiring. Dimmable with a TRIAC (low voltage electronic) dimmer, sold separately. Can be converted to a Non-IC new construction housing with 24052 mounting plate, IC new construction housing, or IC Airtight new construction housing, sold separately. The TE162LED 6 Inch Aperture 2-Light Non-IC Remodel Housing is constructed of 18 gauge powder coated steel and features adjustable mounting clips suitable for 1/2 inch and 5/8 inch drywall. NOTE: 1-Light and 4-Light Not Available in Platinum Finish. Includes 2X15 watt, 120 volt LED module with 20 or 40 degree beam angle in 3000K, 3500K or 4000K color temperature, 90+CRI, 2X1290 lumens. 50,000 hour average lamp life. Non-IC designation requires that insulation be kept a minimum of 3 inches away from housing. Includes adjustable 2-light trim made of extruded aluminum available in a powder coat White trim with a Black reflector, or a powder coat Black or Platinum trim with a Black reflector. Trim: 9.5 inch x 5.13 inch cutout. Housing: 10.4 inch length x 6.13 inch width x 6.3 inch height. 0-20 degree horizontal adjustment. Class 2 dimmable constant current driver included.

Key Features

• Includes adjustable 2-light trim made of extruded aluminum available in a powder coat White trim with a Black reflector, or a powder coat Black or Platinum trim with a Black reflector.
• Non-IC designation requires that insulation be kept a minimum of 3 inches away from housing.
• Driver box mates to fixture by 24 inch flexible BX cable and has one 1/2 inch and two 3/4 inch knockouts for through branch wiring.
• Class 2 dimmable constant current driver included.
• The TE162LED 6 Inch Aperture 2-Light Non-IC Remodel Housing is constructed of 18 gauge powder coated steel and features adjustable mounting clips suitable for 1/2 inch and 5/8 inch drywall.
• Includes 2X15 watt, 120 volt LED module with 20 or 40 degree beam angle in 3000K, 3500K or 4000K color temperature, 90+CRI, 2X1290 lumens.
