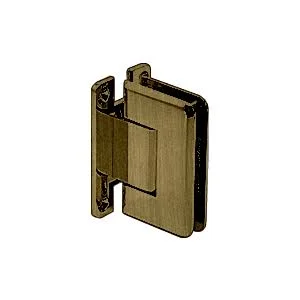

CRL P1n337abr Antique Brass Pinnacle 337 Series Adjustable Wall Mount Full Back Plate HINGE - Gold

Description

NOTE: Door glass width may require alteration from standard clearance deductions when adjusting angles. Adjustment to accommodate the desired angle (up to 90 degree) is done after the door is installed. For doors pulling outwards only (using a clear door jamb) you can adjust the hinge to close 5 degree inside the shower area thus having the door close snugly against the jamb. Important Notes: CRL Shower Door Hinges are designed for residential or hotel shower use. Contact the DK Hardware Sales Shower Door Department. By merely tightening the Allen screws your door will self-center to the desired closed position. Closing Type: Self-Centering when within 15 degree of closed position. Custom finishes are available on request. Use only the template included with this hinge. The door can swing 90 degree inward and also 90 degree outward (adjusting angle from factory set position will reduce 90 degree swing in that direction). (36 kg) with a maximum door width of 28" (711 mm). (54 kg) with a maximum door width of 32" (813 mm). SPECIFICATIONS: Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass Special Feature: Adjustable to any angle up to 90 degree without having to take door down. P1N13 Gasket Pack must be purchased separately for use with 5/16" (8 mm) thick tempered glass. SPECIFICATIONS: Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass Special Feature: Adjustable to any angle up to 90 degree without having to take door down. Call for details.

Key Features

• (54 kg) with a maximum door width of 32" (813 mm).
• P1N13 Gasket Pack must be purchased separately for use with 5/16" (8 mm) thick tempered glass.
• (36 kg) with a maximum door width of 28" (711 mm).
• Using three hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 120 lbs.
• SPECIFICATIONS: Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass Special Feature: Adjustable to any angle up to 90 degree without having to take door down.
• Using two hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 80 lbs.
