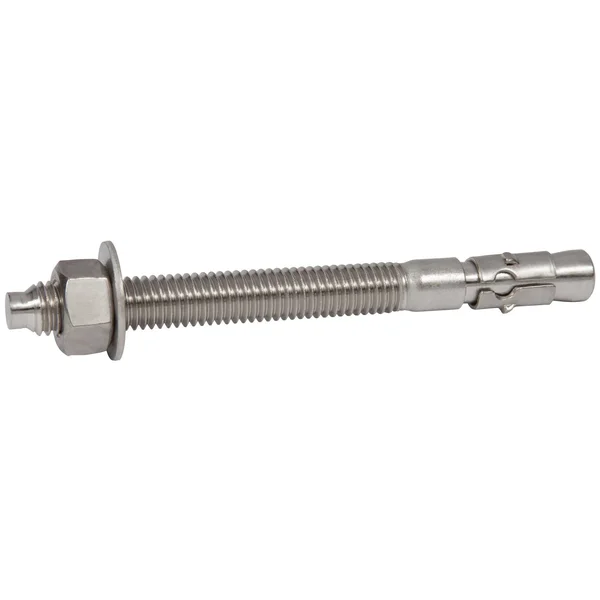

CONFAST 1/4x22 x 1-3/4x22 Stainless Steel Wedge Anchor (100 per Box)
SKU: SKU-B0B562570A07
List Price: C$129.54
Price includes all taxes
In Stock — Ready to Dispatch
-
Shipping calculated at checkout · Delivery timing is shown in the shipping policy
-
30-Day Returns · Eligibility rules apply
-
Secure Checkout · SSL encrypted payment
Eligible items may be returned within 30 days. See the return policy for conditions.
Payment Method
Cash on Delivery — pay when your order is delivered.
Product Details
About this product
Description
Diameter of anchor the diameter of the anchor is 1/4in. Length anchor the length of the anchor is 1-3/4in thread length the length of the threads on the anchor is 5/8in in length. Applications the anchor is made from 304 stainless steel. Fixture hole diameter the hole in the fixture or material being fastened must be larger than the designated diameter of the anchor. Minimum embedment the minimum anchor embedment into the concrete is 1-1/8in. Edge distance it is very important not to install the anchor any closer than 1-1/4in from an unsupported edge of the concrete. Therefore, the anchor must be installed so that a minimum of 1-1/8in of the anchor is embedded into the concrete. Applications the anchor is made from 304 stainless steel. Hole diameter/bit diameter the anchor requires a 1/4in hole to be drilled in the base material concrete only. Spacing between anchors each anchor must be spaced a minimum distance of 2-1/2in from each other when measured center to center. This anchor is designed for use in concrete only, and should never be used in block or brick base material. Environment the anchor is designed for use in a wet environment. This will ensure that the minimum embedment of 1-1/8in will be met. Hole diameter/bit diameter the anchor requires a 1/4in hole to be drilled in the base material concrete only. The 1/4in diameter anchor requires the hole in the fixture to be 5/16in.
Key Features
- Hole diameter/bit diameter the anchor requires a 1/4in hole to be drilled in the base material concrete only.
- Minimum embedment the minimum anchor embedment into the concrete is 1-1/8in.
- Therefore, the anchor must be installed so that a minimum of 1-1/8in of the anchor is embedded into the concrete.
- Applications the anchor is made from 304 stainless steel.
- Length anchor the length of the anchor is 1-3/4in thread length the length of the threads on the anchor is 5/8in in length.
- Diameter of anchor the diameter of the anchor is 1/4in.
