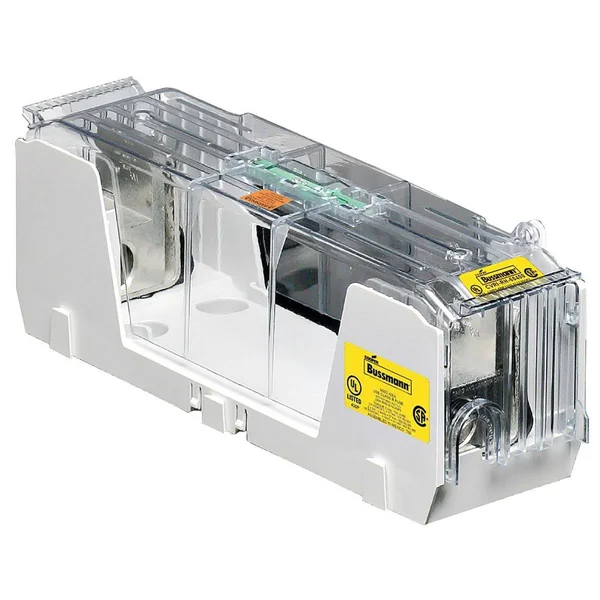

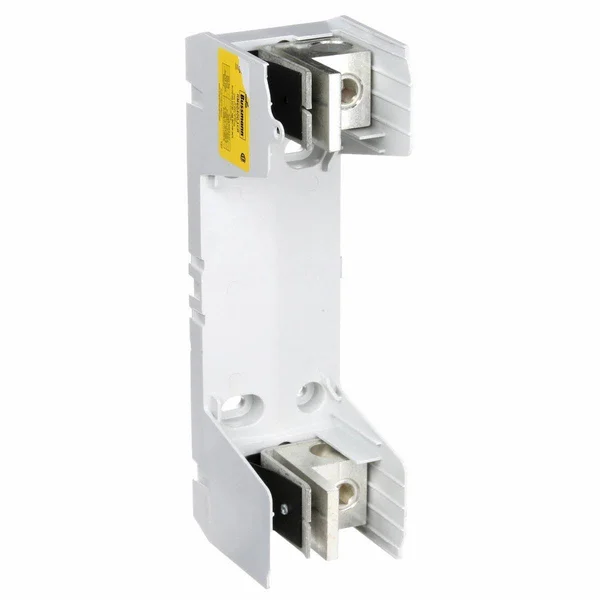

Bussmann RM60400-1CR Fuse Block, Industrial, 400A, 1 Pole

Description

It features standard phase barriers between poles for additional safety. It has torque rating of 57 Nm. Fuse block has built-in lockout/tag out feature to improve safety and standard fuse clip reinforcing springs to enhance electrical contact. Fuse block is UL listed and CSA certified. Fuse block has IP20 finger-safe covers to allow for inspecting wire terminations or thermograph measurements without removing cover. Fuse block has integral dovetails that allow assembly of multiple poles at point-of-use for greater application flexibility. It offers ease of use Fuse block is self-extinguishing device rated under UL 94V0 and has self-extinguishing covers rated under UL 94HB. Fuse block has voltage rating of 600 VAC and current rating of 400 Amps. It accommodates copper/aluminum solid/stranded wire of size 3/0 - 4 AWG. Fuse block measures 12.500 Inch x 3.700 Inch x 4.800 Inch. Bussmann Fusetron 1-Pole Class R Knifeblade fuse block features thermoplastic body and tin-plated aluminum box lug terminals. It accommodates copper/aluminum solid/stranded wire of size 3/0 - 4 AWG. It operates at temperature range of -40 to 120 deg C. Bussmann Fusetron 1-Pole Class R Knifeblade fuse block features thermoplastic body and tin-plated aluminum box lug terminals. Fuse block accommodates solid/stranded wire of size 600 kcmil, 500kcmil-4 AWG.

Key Features

• Fuse block measures 12.500 Inch x 3.700 Inch x 4.800 Inch.
• It accommodates copper/aluminum solid/stranded wire of size 3/0 - 4 AWG.
• Bussmann Fusetron 1-Pole Class R Knifeblade fuse block features thermoplastic body and tin-plated aluminum box lug terminals.
• Fuse block has IP20 finger-safe covers to allow for inspecting wire terminations or thermograph measurements without removing cover.
• It features standard phase barriers between poles for additional safety.
• Fuse block has integral dovetails that allow assembly of multiple poles at point-of-use for greater application flexibility.
