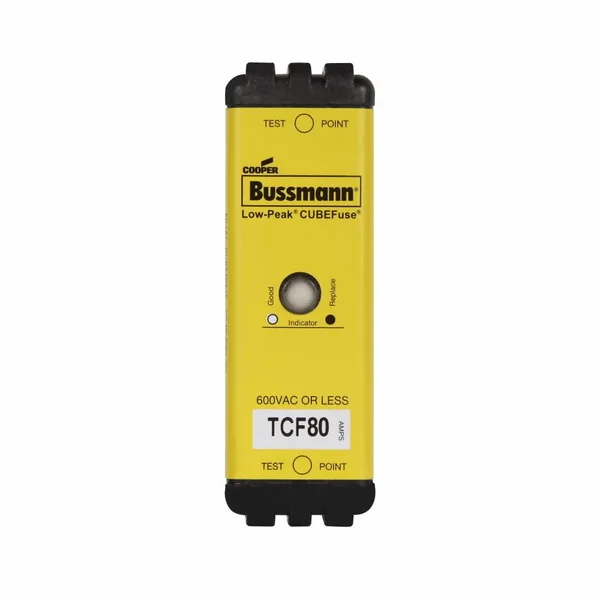

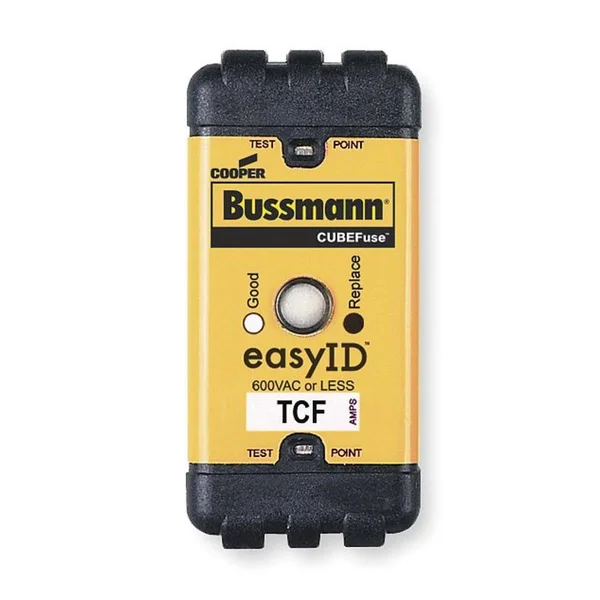

Bussmann 80A Time Delay Class J Fuse 600VAC/300VDC, TCF80

Description

It is suitable for branch circuit disconnect and branch circuit protection. Finger-Safe fuse is UL listed/CSA certified/CE compliant and meets IEC requirements. Bussmann Low-Peak CubeFuse Class J Finger-Safe branch circuit rated fuse comes with an element window to visually inspect blown element. It features dual-element construction with a minimum of 10 seconds time-delay at 500% of rated current providing protection. Fuse provides a faster response to minimize destructive thermal and magnetic forces. Fuse provides a faster response to minimize destructive thermal and magnetic forces. Fuse offers low watt loss power consumption and has robust cycling that can withstand inrush current. Low voltage fuse finds application in electrical panelboards, industrial control, machinery disconnects and required finger safe systems. It features dual-element construction with a minimum of 10 seconds time-delay at 500% of rated current providing ultimate protection. It measures 1 Inch x 3.010 Inch. The long time-delay fuse reduces circuit openings due to temporary overloads and transient surges. Dual-element fuse can be used as a time-delay or a slow-blow fuse making it economical. It features dual-element construction with a minimum of 10 seconds time-delay at 500% of rated current providing protection.

Key Features

• Bussmann Low-Peak CubeFuse Class J Finger-Safe branch circuit rated fuse comes with an element window to visually inspect blown element.
• The long time-delay fuse reduces circuit openings due to temporary overloads and transient surges.
• Dual-element fuse can be used as a time-delay or a slow-blow fuse making it economical.
• It measures 1 Inch x 3.010 Inch.
• It features dual-element construction with a minimum of 10 seconds time-delay at 500% of rated current providing protection.
• Fuse provides a faster response to minimize destructive thermal and magnetic forces.
