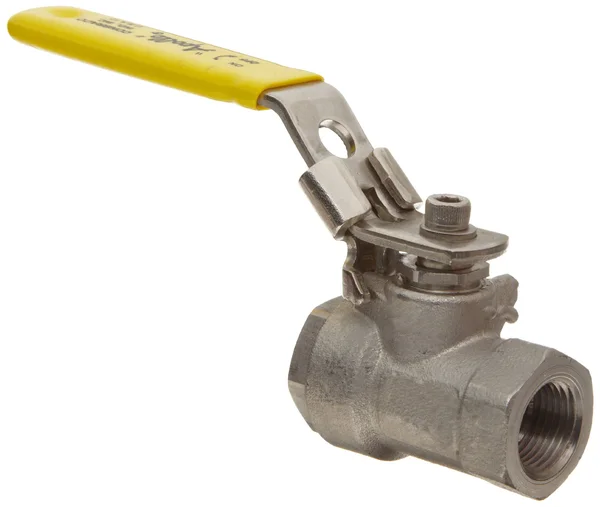

Apollo 76F-108-27A 2x22 Apollo Stainless Steel Ball Valve Full Port with Latch

Description

The lever handle can be locked in either the open or closed position. Ball valves can be referred to as full port or reduced port (also known as regular or standard port) depending on the inner diameter of the valve. The ball valve is full port for reduced friction; its inner diameter is the same as the inner diameter of the pipe it connects to enable maximum operating efficiency. This valve is made of stainless steel for resistance to corrosion and has a stainless steel latch-lock lever handle with a stainless steel nut and vinyl sleeve for manual on/off control. A ball valve is full port if the hole of the ball is the same size as the inner diameter of the connecting pipeline (resulting in lower friction) and is reduced port if the hole of the valve is one pipe size smaller than the pipe, resulting in less flow. The valve is inline for connecting two pipes going in the same direction and has NPT threads on both ends for creating tighter seals than straight threads. The company, founded in 1928 and headquartered in Matthews, NC, meets International Organization for Standardization ISO/IEC 17025:2005 and makes products that meet ISO and American National Standards Institute (ANSI) standards. They are primarily used in air, gas, liquid, and steam applications. Reinforced polytetrafluoroethylene (RPTFE) seats and seals reduce the risk of valve leakage. Ball valves may have a handle or lever that aligns with the balls position (open or closed) for manual operation.

Key Features

• This valve is for use with water lines, processing plants, and agricultural applications and meets standard MSS SP-110 for quality assurance.
• The Apollo 76F-100-A series two-piece full port inline ball valve is made of stainless steel and has a latch-lock lever handle and female National Pipe Taper (NPT) threaded connections on both ends.
• The lever handle can be locked in either the open or closed position.
• Ball valves use a spherical disc to control the flow between pipes, tubes, or hoses.
• The ball valve is full port for reduced friction; its inner diameter is the same as the inner diameter of the pipe it connects to enable maximum operating efficiency.
• This valve is made of stainless steel for resistance to corrosion and has a stainless steel latch-lock lever handle with a stainless steel nut and vinyl sleeve for manual on/off control.
